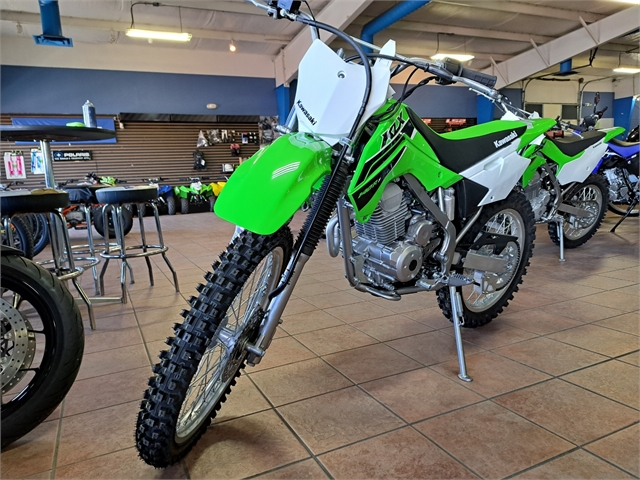

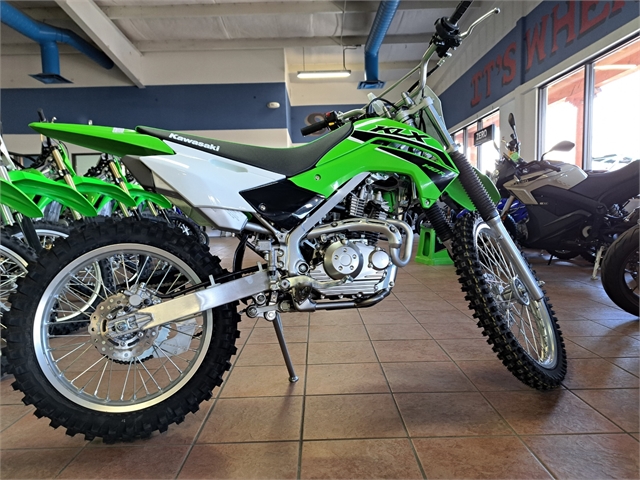

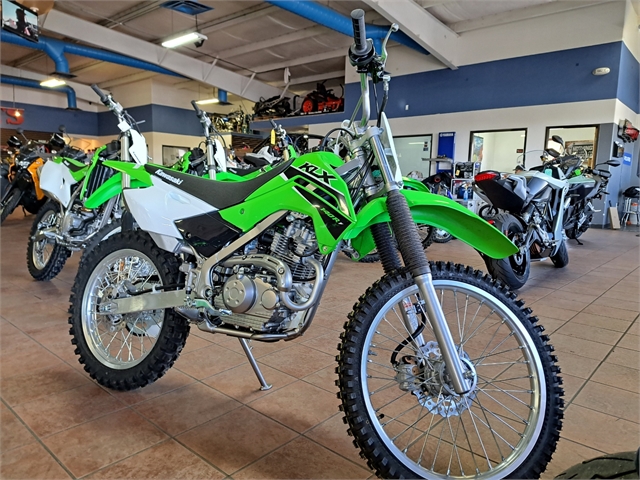

2023 Kawasaki KLX140R F

Stock #00702
MSRP: $4,049 USD

227 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2023 Kawasaki KLX KLX140R F . I'm in the area and you can reach me at or by phone at

Available Color

  • Lime Green
  • Status:
    New
  • Vehicle:
    2023 Kawasaki KLX140R F
  • VIN:
    MH4LXDC15PJP00702
  • Model Number:
    KLX140CPFNN
  • Stock Number:
    00702
  • Title:
    Clear
  • Location:
    Santa Fe Motor Sports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    8.7
  • Front Brake Diameter (mm):
    220
  • Front Brake Type:
    Disc
  • Rear Brake Diameter (in):
    7.3
  • Rear Brake Diameter (mm):
    186
  • Rear Brake Type:
    Disc

ENGINE

  • Bore (in):
    2.29
  • Bore (mm):
    58
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    20
  • Carburetor:
    Yes
  • Compression Ratio:
    9.5
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    144
  • Displacement (ci):
    8.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric
  • Stroke (in):
    2.14
  • Stroke (mm):
    54.4
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.9
  • Seat Height (mm):
    861.1
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.3
  • Front Suspension Size (mm):
    33
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    7.5
  • Front Travel (mm):
    190.5
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    UNI-TRAK®
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    7.9
  • Rear Travel (mm):
    200.7

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    1.5
  • Fuel Capacity (l):
    5.7
  • Ground Clearance (in):
    12.4
  • Ground Clearance (mm):
    315
  • Height (in):
    44.7
  • Height (mm):
    1135.4
  • Length (ft):
    6.58
  • Length (ft/ft):
    6
  • Length (ft/in):
    6.9
  • Length (in):
    78.9
  • Length (mm):
    2004.1
  • Wet Weight (kg):
    99
  • Wet Weight (lbs):
    218.2
  • Wheelbase (in):
    52.4
  • Wheelbase (mm):
    1331
  • Width (in):
    31.1
  • Width (mm):
    789.9

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    2.75 x 21 45M
  • Front Tire Speed Rating:
    M
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    1.6
  • Rear Tire (Full Spec):
    4.10 x 18 59M
  • Rear Tire Speed Rating:
    M
  • Rear Wheel Diameter:
    18
  • Rear Wheel Width (in):
    1.85
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
